JAN 2026 : GR(HS-1)

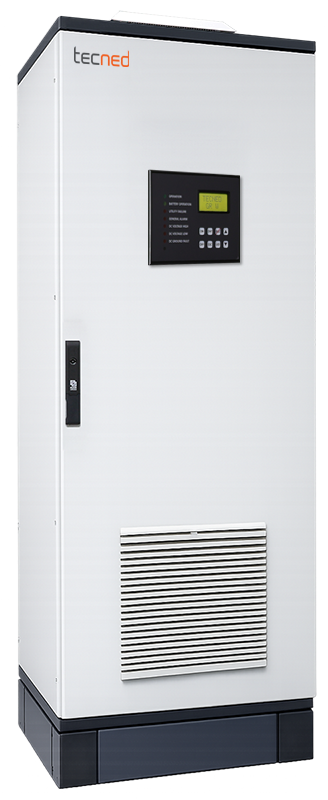

Enhance Power Reliability with TECNED GR (HS-1)
Industrial Rectifier & Charger – 24V to 220V DC
Ensures uninterrupted control power for MV/HV switchgear, SCADA, and industrial automation.
- Plug-in, hot-swappable design
- Programmable alarms & settings
- 95% efficiency , PF 0.93
- Auto float/boost charge
- Earth fault detection
- LCD display & LED indicators
- IP42 cabinet Options
- RS485/Modbus/TCP-IP
- Isolation transformer
- Wall/floor mounts . Battery racks (17-145Ah)
DEC 2025 (TTB-i)
Intelligent Power Solutions for Industrial Applications
Green, Safe, and Ready for Your Toughest Applications
- Dual DSP Digital Control for precise, stable, and reliable operation
- IGBT Rectifier with high power factor and low input harmonics
- Output Isolation Transformer for superior load protection
- Intelligent Battery Management to extend battery life
- Battery-to-Grid Discharge Function for easy high-current testing
- Capacitor Health Monitoring for early fault detection
- BLOCK Battery Sharing for redundancy and higher availability
- Flexible Battery Configuration to quickly bypass faulty units
- Supports Advanced Storage Media like lithium-ion and supercapacitors
- Built for Harsh Environments with coated PCBs and optimized cooling
- Low-Smoke, Halogen-Free Design ensuring safety and sustainability

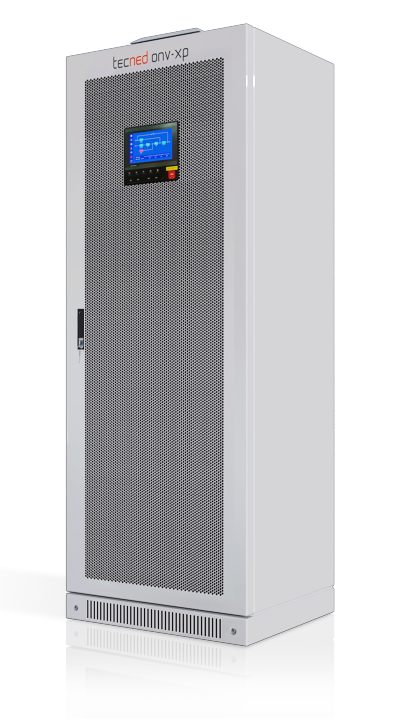

NOV 2025 (X-Pnd)
Power You Can Trust, Intelligence You Can Control!
High reliability Engineered for uninterrupted performance with wide input range, dual DSP, and hot-swappable modules. Features smart cooling, full protection, and advanced safety for maximum uptime
User-friendly Interface Intuitive 7-inch touchscreen with LED indicators provides comprehensive monitoring and control. Features large data storage (up to 10000 events), user-friendly HMI with graphical displays, and dual-button On/Off control to prevent accidental operation.
Green power Maximize energy savings with high AC/AC efficiency (up to 97%) and ECO mode (up to 99%). Minimizes heat dissipation, reduces grid pollution with a high input power factor, and extends module life through advanced sleep mode.
Advanced Technology Features a three-level design for low harmonics and high efficiency. Power Walk-In reduces inrush current, and advanced parallel expansion supports up to 9.6MW. Also incorporates self-dedusting and Parallel ECO modes for optimized performance.
Intelligent Management Ensures proactive system maintenance with Fault Trace Management (FTM), capturing 200ms waveforms for rapid failure analysis. Battery life is optimized with 3-stage charging and the ability to replace individual faulty batteries in 30-50 battery strings. Key component pre-alarms provide early warnings, and full asset management tracks spare parts, maintenance timelines, and service personnel.
